Chapter 4 – SocketModem (MT2456SMI-22)

Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342C) 83

SocketModem Configuration

Serial Configuration

The MT2456SMI-22 SocketModem with a serial interface use a 16-pin interface to provide an on-board DAA with tip

and ring connections, audio circuit for call-progress monitoring and serial interface via logic level signals.

Note: The bolded, shaded pins are active Mt2456SMI-22 pins.

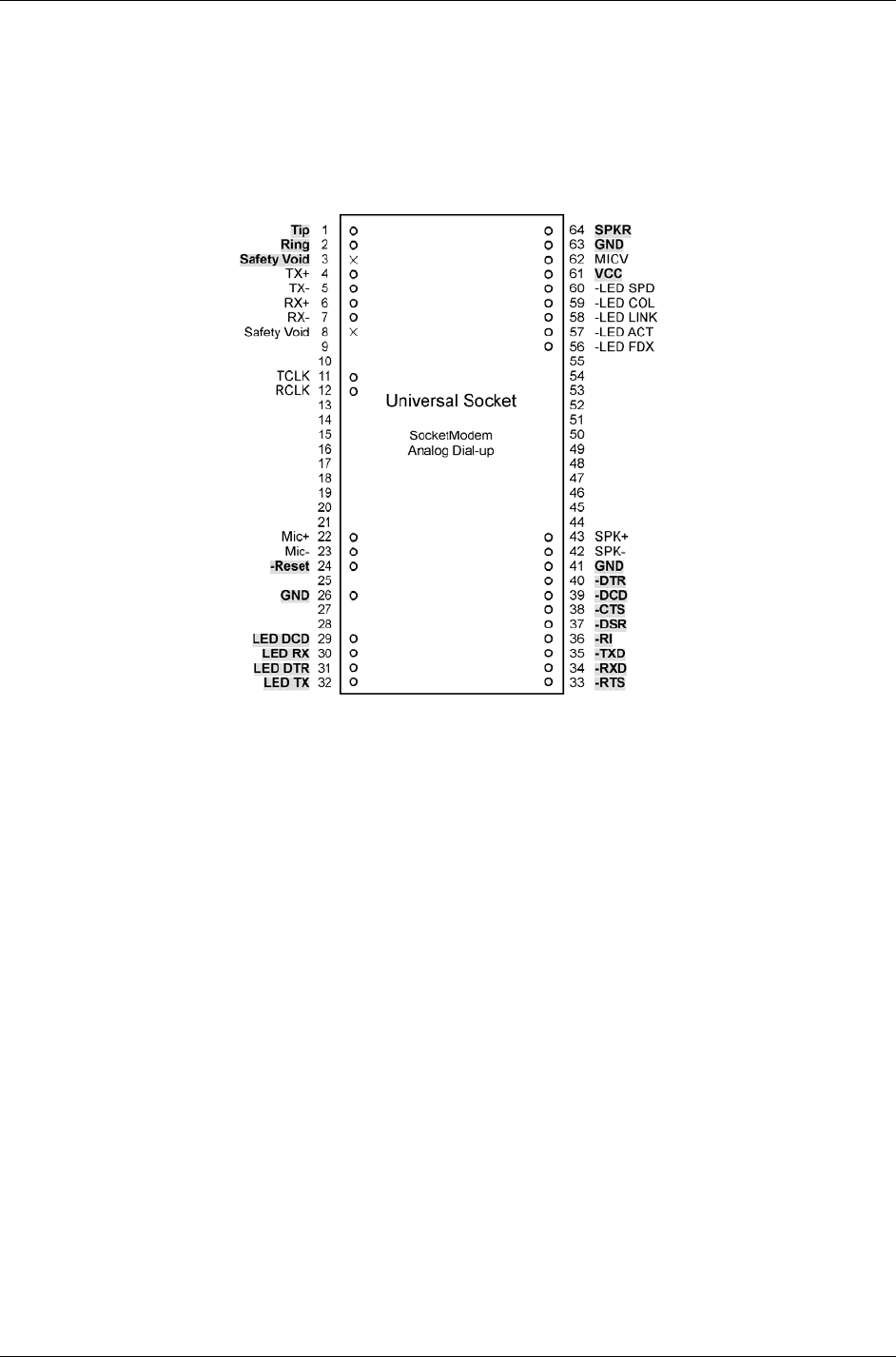

Serial SocketModem Pinout
