Appendix B – Installing TCP/IP

Multi-Tech Systems, Inc. RF550VPN User Guide 62

Windows NT

1. Click Start | Settings | Control Panel, and then double-click the Network icon. In the Network

dialog box, click the

Protocols tab, and click the Add button.

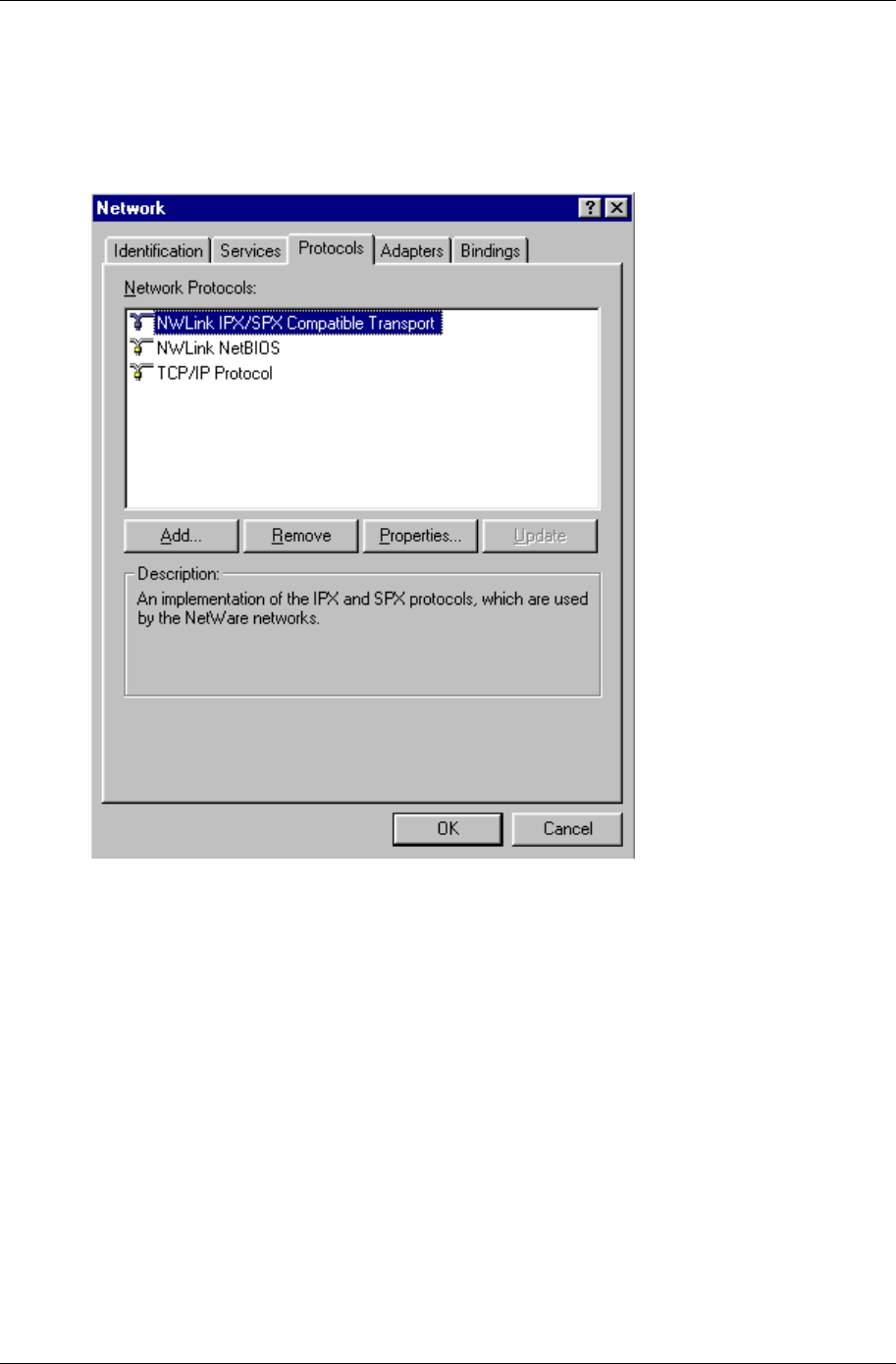

(This screen shows TCP/IP already installed)

2. The Select Network Protocol screen displays. Select TCP/IP and follow the on-screen instructions

to complete installation.

3. Allow your system to reboot.

Windows 2000/XP

TCP/IP is automatically installed in Windows 2000 and Windows XP.
