Chapter 6 – Managing the RouteFinder Using a Web Browser

Multi-Tech Systems, Inc. RF550VPN User Guide 41

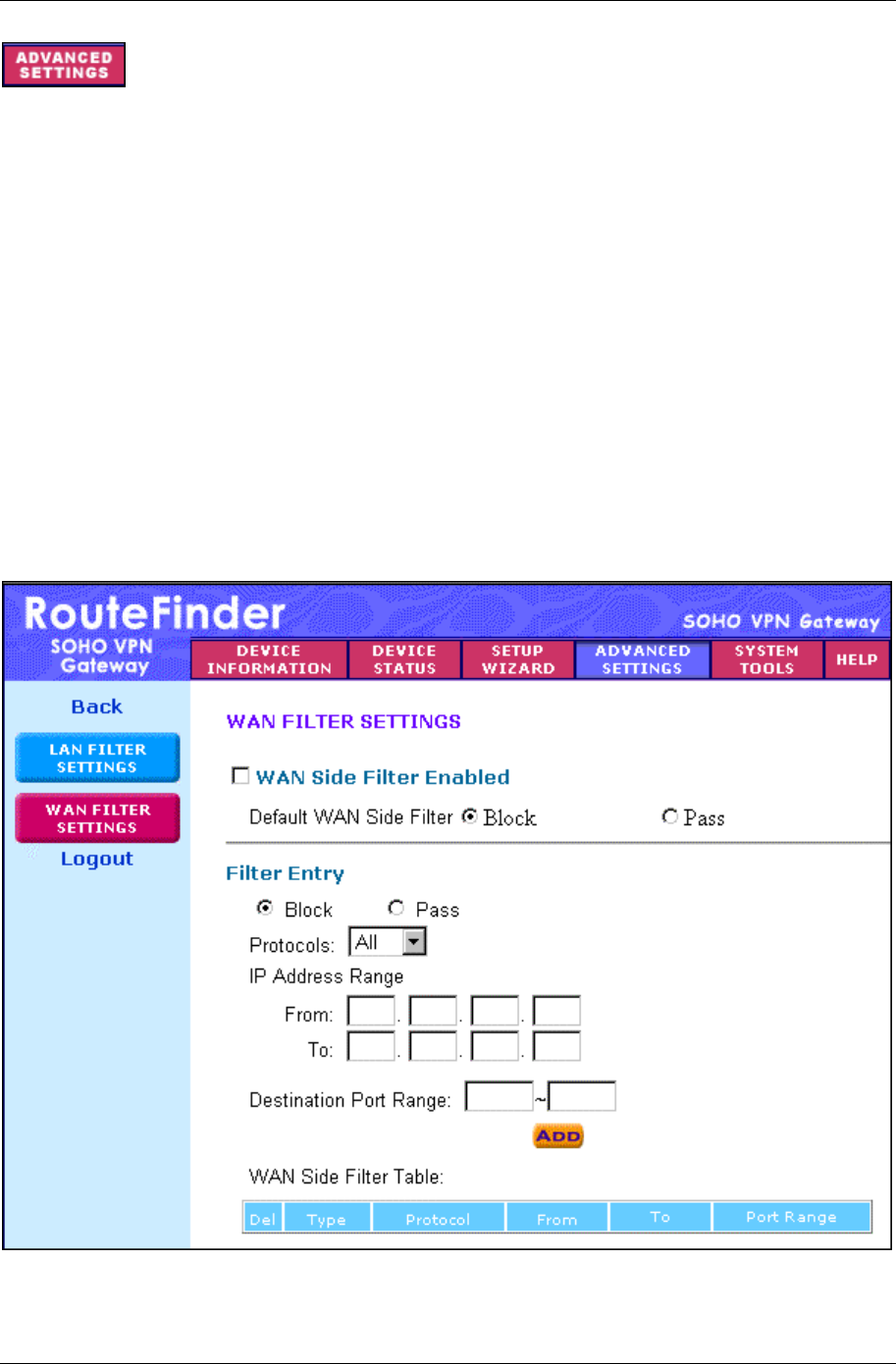

– WAN Filter Settings

To access this screen, click the Filter Settings button on the left side of the Advanced Settings screen.

Then click the

WAN Filter Settings button on the left side of the screen. The WAN Filter Settings screen

displays.

The

WAN Filter Settings function allows the network administrator to define whether remote/outside

users have the permission to access the local network. To activate, check the

WAN Side Filter Enabled

box. Then define the policy.

1. Check the

WAN Side Filter Enabled box to begin a list of users and permissions.

2. Select the WAN side filter:

Block or Pass.

3. Select the client filter settings:

Block or Pass.

4. Select the protocol to be used from the

Protocol drop-down list box.

5. Enter the client

IP Address Range and Destination Port Range.

6. Click the

Add button. The entry displays on the lower part of the screen.

7. Continue adding table entries. When complete, click the

Submit button (not shown on this

screen capture).
