Chapter 3 – Configuring the PC

Multi-Tech Systems, Inc. RF550VPN User Guide 15

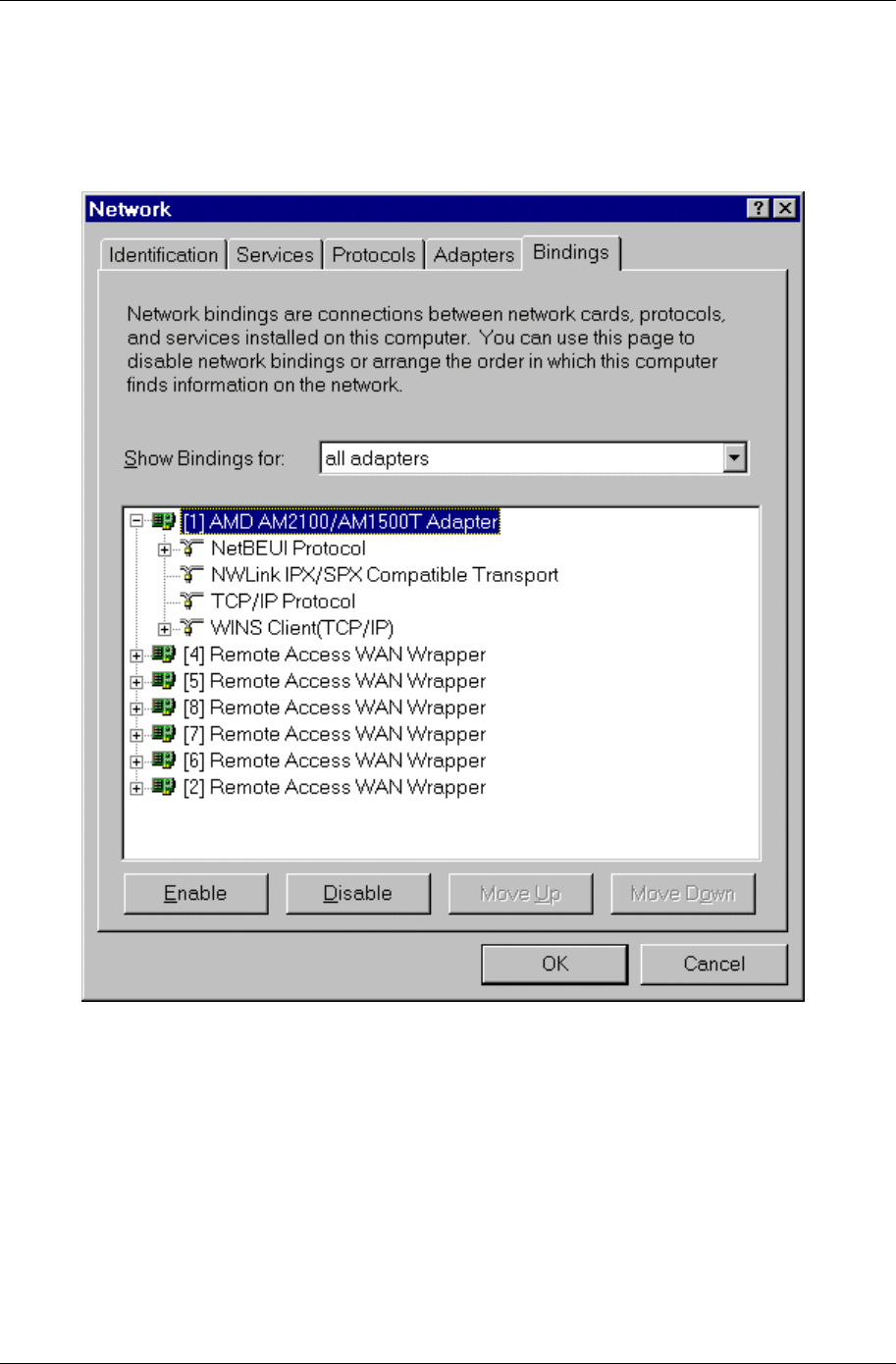

5. The Bindings dialog box displays.

In the Show Bindings for drop-down list box, select all adapters. A list of all adapters

displays on the lower part of the screen.

Double-click the entry for your Ethernet card adapter. This expands the list. Verify that TCP/IP

Protocol is included in the list below your adapter name.

6. TCP/IP and your adapter are now setup.
