 Chapter6—UsingtheSoftware

MultiVOIP®Voice/FaxoverIPGateways 127

DownloadingFactoryDefaults

1. TheMultiVOIPConfigurationprogrammustbeoffwheninvokingtheDownloadFactoryDefaultscommand.

Ifitison,thecommanddoesnotwork.

2. TousetheDownloadFactoryDefaultscommand,gotoStart|Programs|MultiVOIPx.xx.|Download

FactoryDefaults.

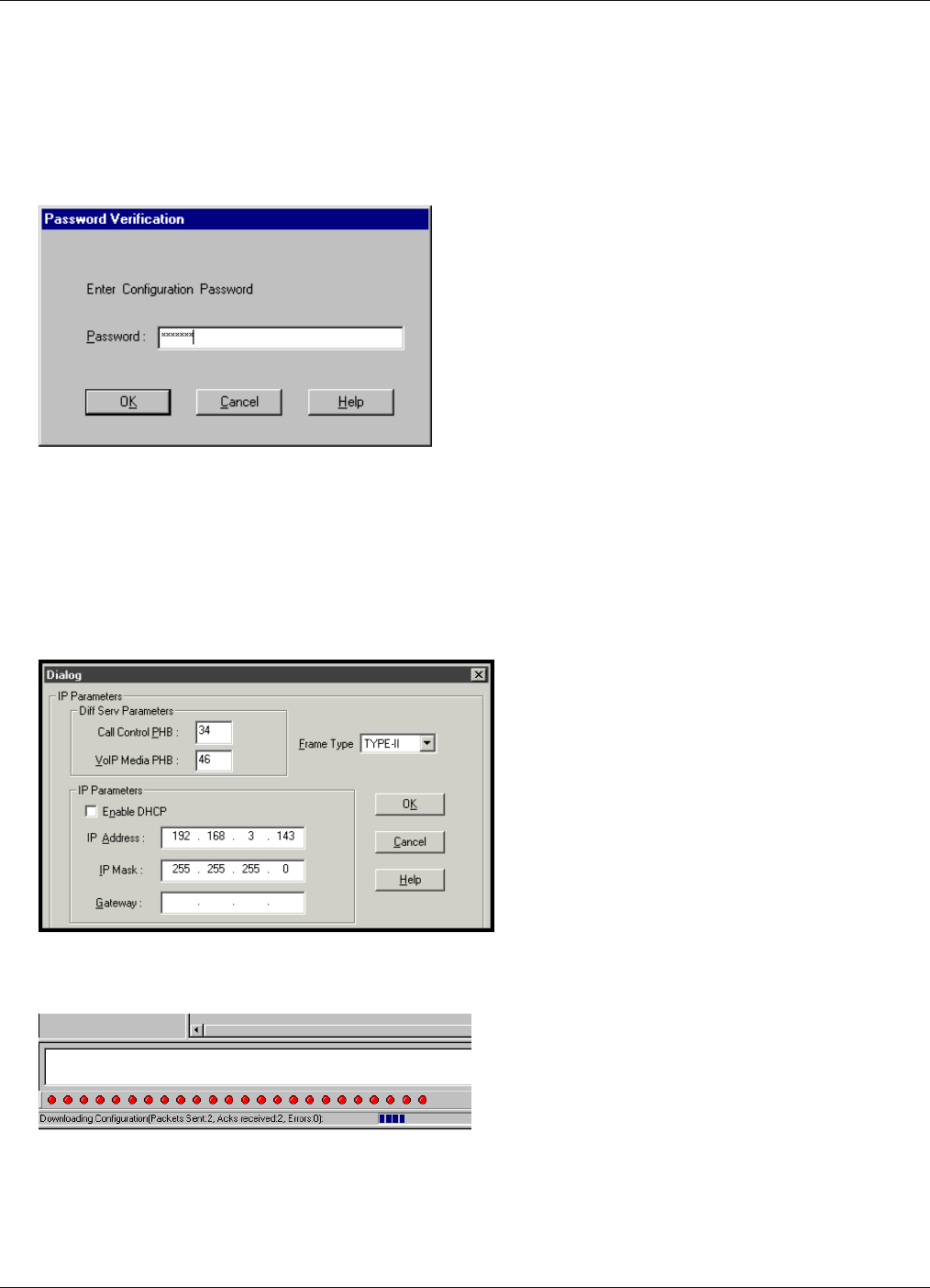

3. Ifapasswordisestablished,thePasswordVerificationdialogboxopens.



TypethepasswordandclickOK.

4. TheMVPx.xx‐Firmwarewindowappearssaying“MultiVOIP[modelnumber]isup.ReboottoDownload

Firmware?”

ClickOKtodownloadthefactorydefaults.

The“Boot”LEDontheMultiVOIPlightsupandremainlitduringthefiletransferprocess.

5. AfterthePCgetsaresponsefromtheMultiVOIP,theDialog–IPParameterswindowopens.



VerifythatthecorrectIPparametersappear.Ifnot,adjustthevalues.ThenclickOK.

6. Progressbarsappearatthebottomofthewindowduringthedatatransfer.



TheMultiVOIP’s“Boot”LEDturnsoffattheendofthetransfer.

TheDownloadFactoryDefaultsprocedureiscomplete.

 
