Chapter 3: FaxFinder Web Management Interface
Multi-Tech Systems, Inc. FaxFinder Admin User Guide 42
Fax Direction
This will show what fax types are allowed for this modem (inbound, outbound, both).
Routing Definition
The routing definition is used to mask digits sent to the modem from a PBX. This is used to tell
the FaxFinder which digits are to be used as the extension number of the incoming call. Click on
the Key
link for a translation of parameter options.

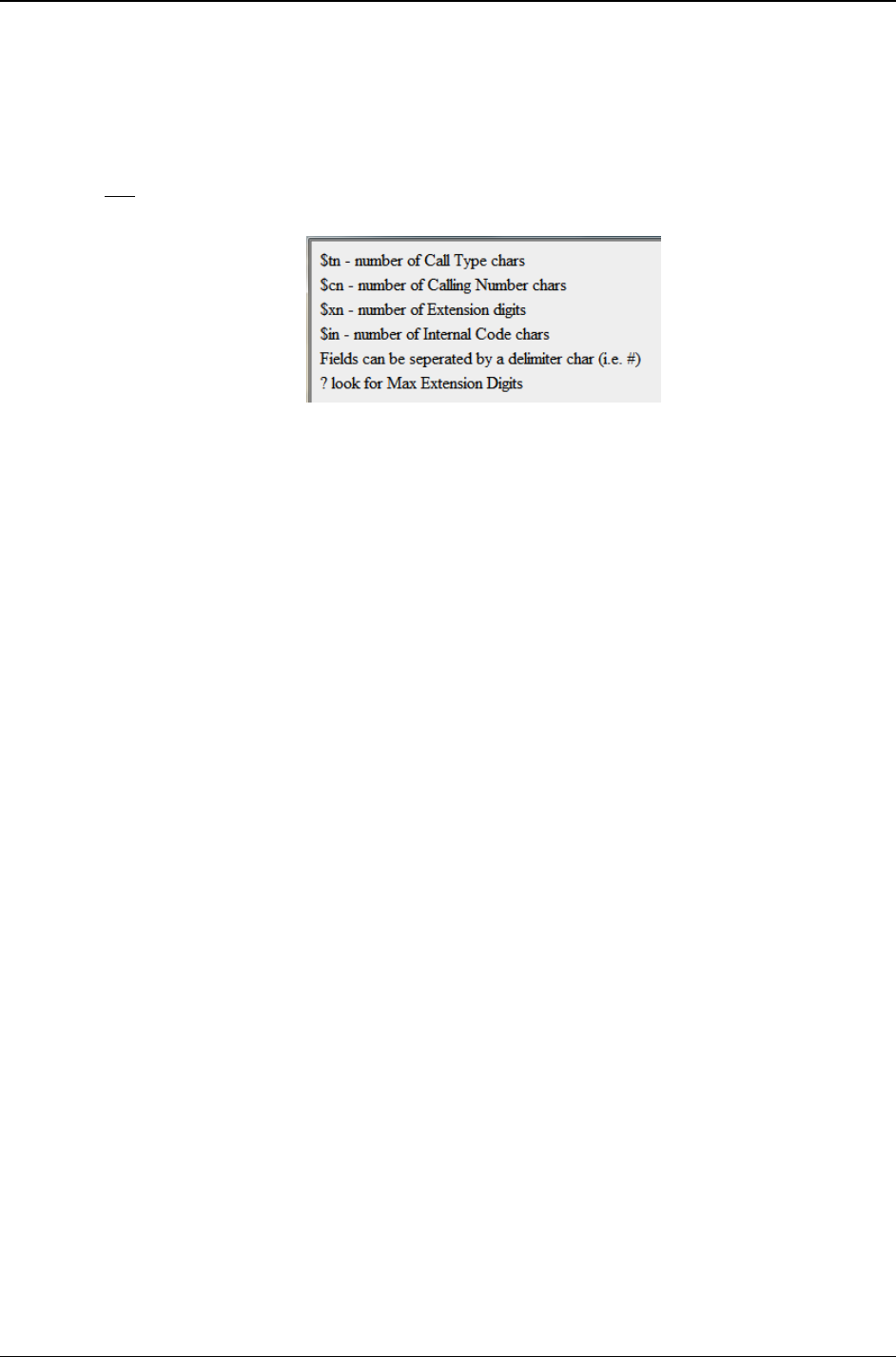

Key
Clicking on the Key link will bring up a window with a list of potential parameters that can be set
for each modem. The n for each definition is the variable number.
For Call Type, Calling Number and Internal Code ($tn, $cn, $in) replace n with the number of
digits you want masked or ignored.
For Extension digits ($xn), replace n with the number of extension digits used for inbound
routing of faxes to recipients listed in the inbound routing configuration.
Description
This will describe the configurations used in the routing definitions (if any) with the parameters
that are set from the options available from the Key link.
Error Correction
Select On or Off for error correction to be used or not for this modem. Default is ‘On.’
Max Baud Rate
Select the maximum connection (baud) rate that is to be allowed on the modem. Default is
14400.
Smart Dial
Select On or Off to have Smart Dial available or not to the modem. With Smart dial set to ‘On’,
the modem will wait to detect a dial tone before dialing.
Dial Prefix
Enter any necessary dial prefix numbers for the internal modem, e.g. a “9” to dial outside of the
PBX.
Tone Dial
Select On or Off for Tone dialing (‘Off’ would indicate pulse dialing). Default is On.
Init String
Enter any modem AT commands needed as an initialization string here.
Fax Debugging
Select On or Off for Fax Debugging information to be logged or not.
Warning: Enabling debugging can quickly generate large log files and should only be turned on
when direct to by Multi-Tech Support.
Save button
When you have entered your information, be sure to click the save button before navigating
away from this page, else your changes may be lost.
