DSU ProxyServer User Guide

MTPSR2-201

Running Diagnostics

The ProxyServer is equipped with a built-in diagnostics utility that can be accessed through the COM

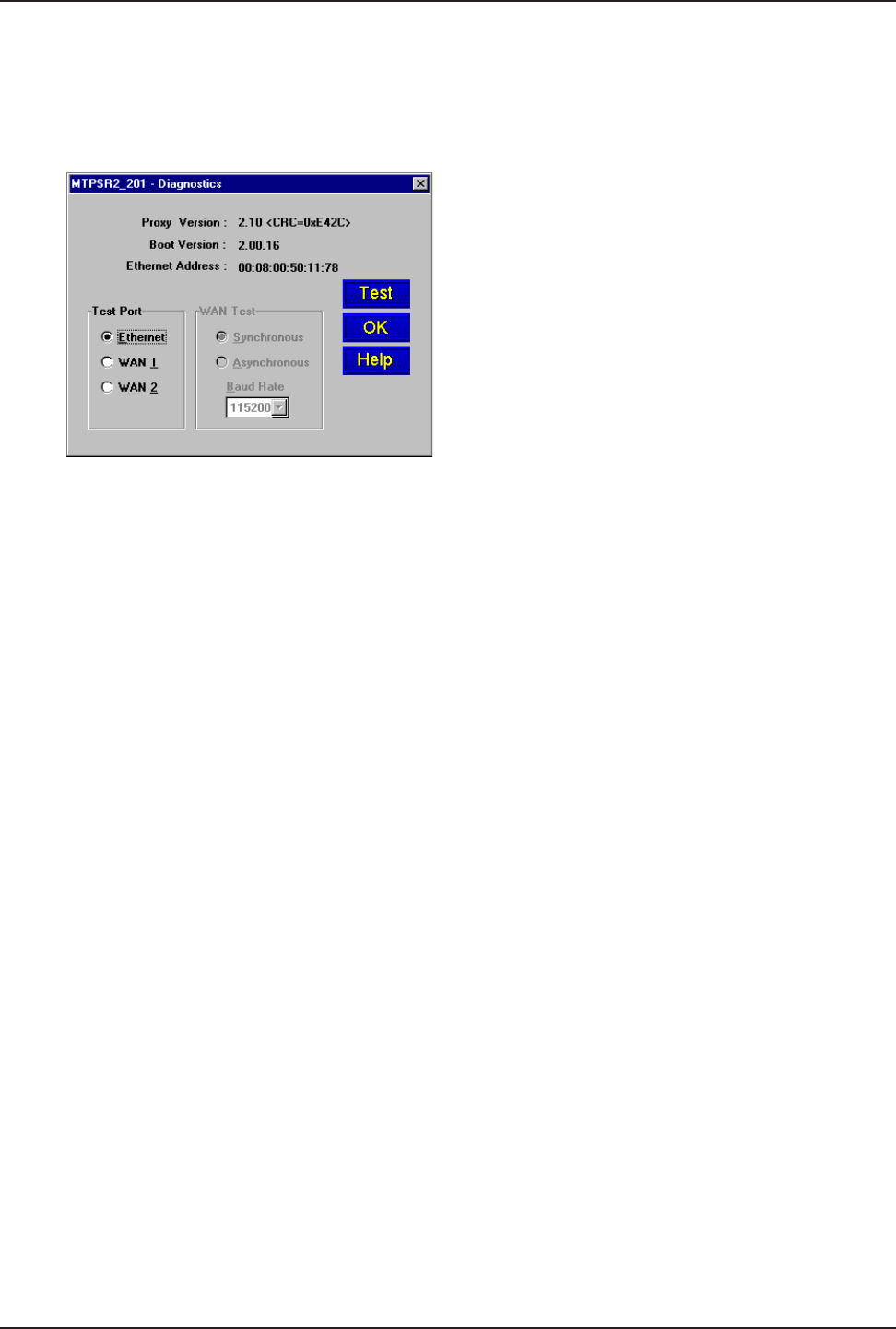

port of your PC (remote users cannot access diagnostics). Click Built-in Test in the Proxy Setup

menu and the Diagnostics dialog is displayed.

In the Test Port group (Ethernet, WAN 1 or WAN 2), select the port where you want to run

diagnostics, install the appropriate loopback plug on that port, then click Test to start the test.

Note: Test will FAIL unless a loopback plug is used on the port you are testing.

For more details concerning the diagnostics dialog box and port testing, refer to the Helps.
